Product code: HDL-M/HS05.1-D

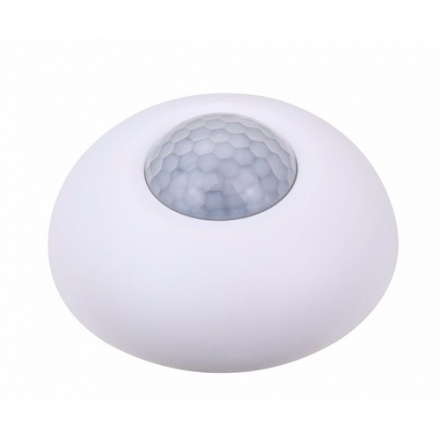

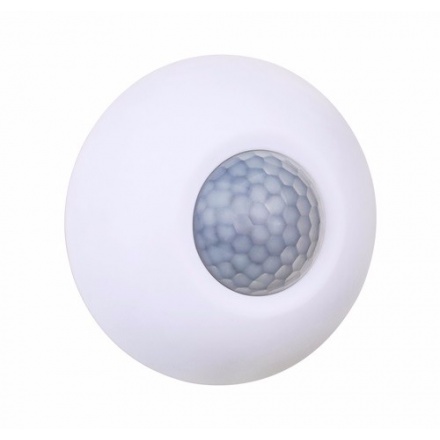

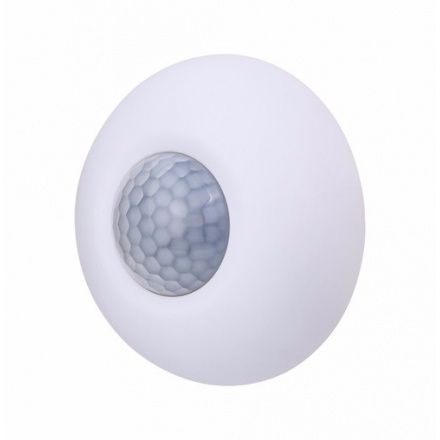

HDL-KNX/EIB M/HS05.1-D PIR and Lux Sensor is a multi- functional movement sensor. It includes 4 independent logic blocks and 1 combined logic block. The logic relations “AND”, “OR” can be set. The logic input conditions contain the conditions of movement sensor, LUX, temperature, dry contact and external conditions. According to different application requirements, the sensor can be configured as the master-slave mode or single mode.
Working Voltage : 21~30VDC
Communication : KNX/EIB
Dynamic Current : ＜ 20mA
Static current : ＜ 5mA
PIR Sensing range in diameter : 8m (install height-2.5m)
Dimensions : Φ84mm×42.6mm
Net weight : 50g
Motion detection
Temperature detection
Light intensity detection
Dry contact input
External telegram input
User-friendly master-slave mode or single mode
Dual logic input conditions: AND/OR
