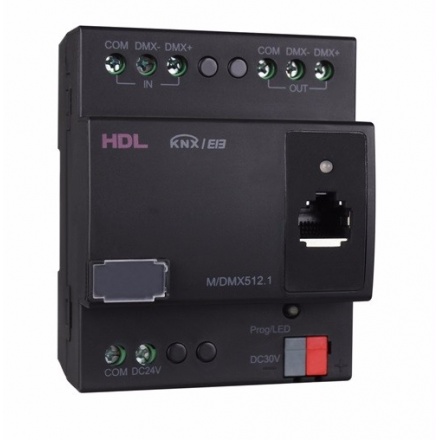

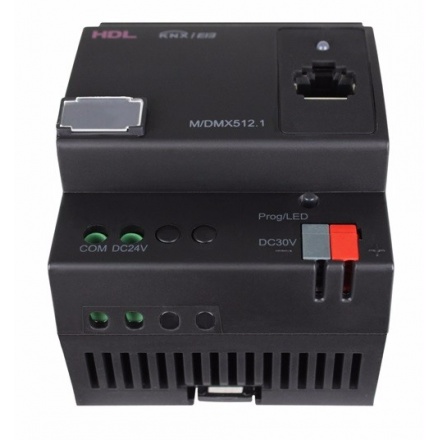

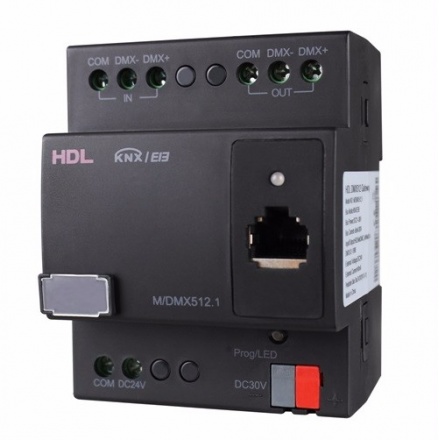

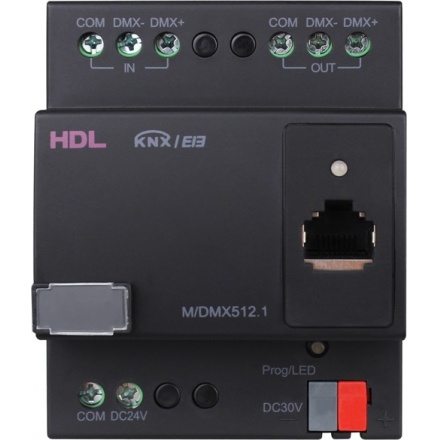

Product code: HDL-M/DMX512.1
KNX/DMX recorder is not only a KNX/DMX gateway which supports two-way control, but also can make record, play back and delete DMX program from the ETS software or KNX wall panel .The maximum record time is up to 4 hours. This module can be used to control devices with built-in DMX protocol such as LED color changer, moving head ,laser light.
Working Voltage (supply by the bus) : 21~30VDC
Communication : KNX/EIB
Dynamic current : ＜15mA
Static current : ＜5mA
AUX Power supply : 40mA/DC24V
Dimensions : 90mm×72mm×66mm
Net weight : 188.5g
