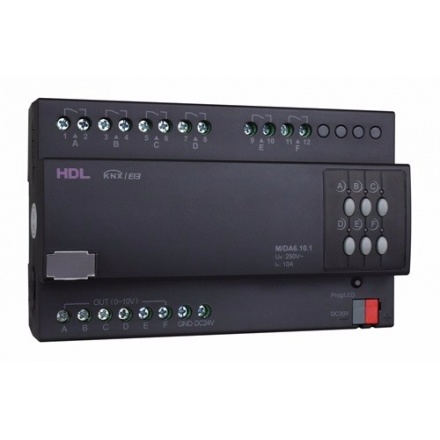

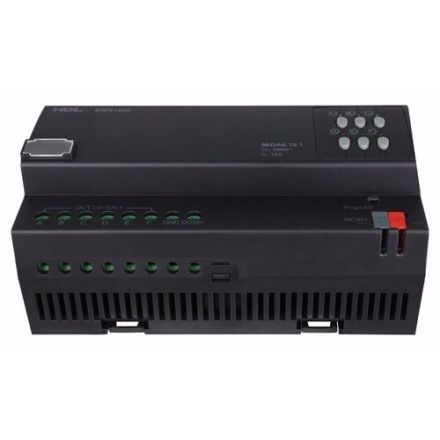

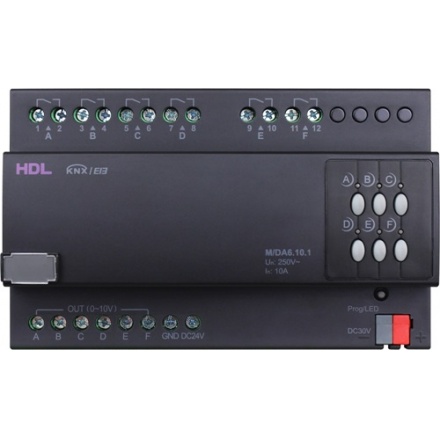

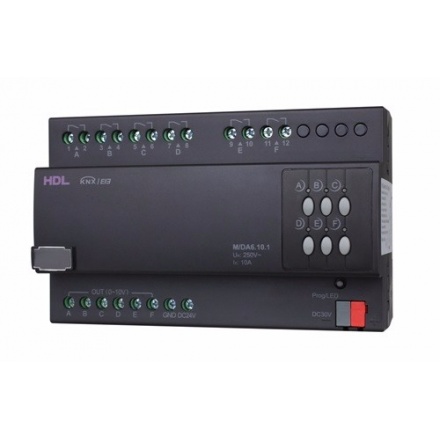

Product code: HDL-M/DA06.10.1
M/DA06.10.1 can dimming from 0V to 10V for per channel. The outputs for MAX 10A be switched ON or OFF on every output channel, also can manually switch. Control types include both input and output, so, Absorption and output type ballast can be connected to this module.
Working Voltage : 21~30V
Communication : KNX/EIB
Dynamic Current : < 15mA
Static Current : 100000
Mechanical life time : >1000000
Dimensions : H90mm x W144mm x D 66mm
Net weight : 448.7g
